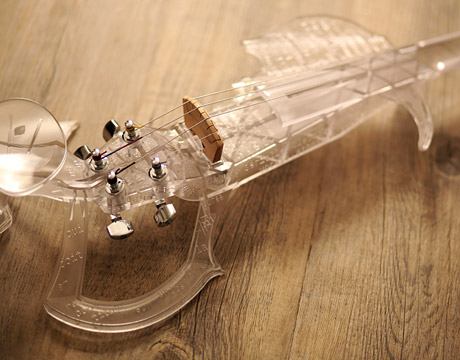

The 3Dvarius 3D-printed electric violin. Image: 3Dvarius

Music to His Printer

Sep 23, 2015

by Eric Butterman ASME.org

Laurent Bernadac has two passions: engineering and playing the violin. Both require a sharp concentration and are an art to be respected. However, for most of his life, he assumed he could not combine the two.

But now he has, with his 3D-printed violin.

“The 3Dvarius was born in 2012,” he says. “I was a student in a mechanical engineering university called INSA and based in Toulouse. I'm also a professional violinist—I began the violin at four. I decided to create an electric violin that was corresponding to my playing style.”

But at first, he didn’t know to design it. “I searched about it and based my design on the planes of a real Stradivarius,” says Bernadac, who previously worked for a hydropower firm in charge of restoring a hydropower factory. “And after three prototypes, and many different 3D models, I reached the final model, which is fully playable.” The third prototype utilized a stereolithography 3D printer.

Laurent Bernadac spent years designing 3Dvarius. Image: 3Dvarius

Design Challenges

According to Bernadac, the biggest challenge in the process was to ensure the solidity of the neck of the violin against the strength of the four chords stress. “Then I had to keep the mandatory shapes of a classical violin to keep it fully playable for a classical violinist,” he says. “The weight of the violin is very important, too. It has to be as light as possible. So I had to design a lattice on the back of the violin to keep it strong and light.”

To design this lattice, he had to check the mechanical solidity of the violin’s body. He accomplished this with RDM6 software, “which computes the deformation of the piece against the stress of the chords,” he says.

A classical violinist can play it because all of what he deems the mandatory shapes—neck, chinrest and bridge—are present,” he says. “But, as a conventional electric violin, it has no soundboard,” he says. “The sound goes directly from the chords to the bridge without losing its power. But electric violin is not really like a classical violin. It's like electric and acoustic guitars. You have to play it differently according to the sound and the effect you want to obtain.”

Listen with Patience

Bernadac says 3D printing objects are used by musical instrument producers to create only prototypes, but he believes it will eventually lead to creating final instruments. “And maybe totally new instruments with totally new sounds,” he adds.

He says electric violins can’t be used like you would a conventional violin and easily insert it into a symphony orchestra. “But I think that all actual instruments will be 3D printable in a few years,” he says, “And maybe we will be able to listen to fully 3D printed musical bands.”
